Hinged Door Systems

Single & Double Leaf Door Systems

Aluminium hinged door systems for single and double leaf applications across commercial, institutional and architect-designed projects.

Hinged door systems are the most widely used door type across commercial and institutional construction — reliable, straightforward in operation and suited to a broad range of opening sizes and usage conditions. Single and double leaf configurations are available, with swing direction, hardware selection and glazing specification all configurable to suit project requirements. Hinged systems are commonly specified for building entries, fire egress points, office and amenity access, and architectural home entries where a traditional swinging door configuration is required. Hunter Windows supplies and installs hinged door systems from the AWS Elevate range, available across multiple series configurations to suit panel size, performance requirements and project scale.

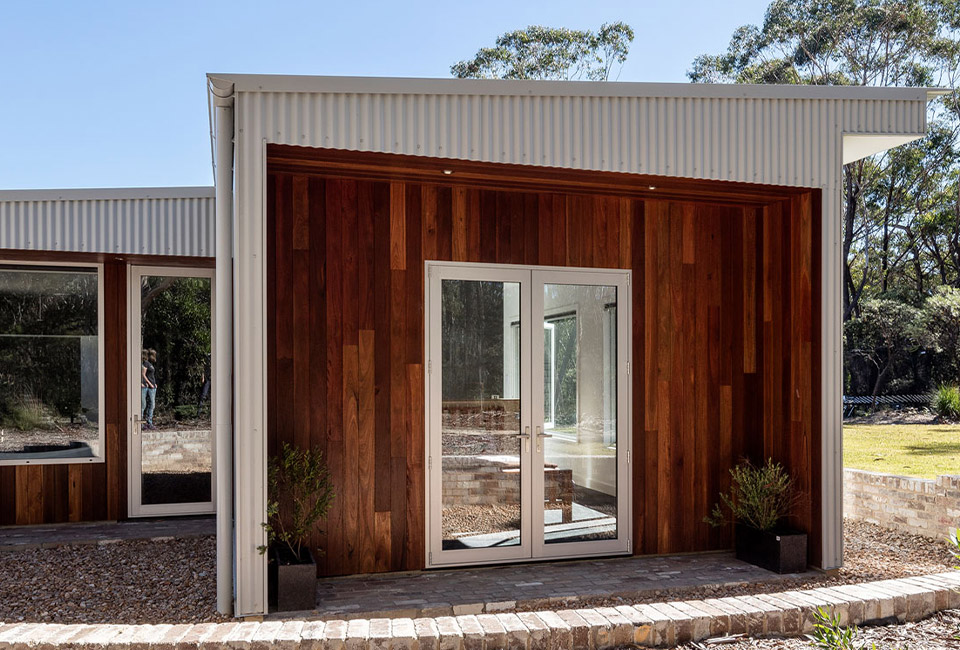

aluminium hinged doors

Typical Applications

Hinged door systems are commonly specified across:

  • Commercial building entries and lobby access points
  • Fire egress and emergency exit doors
  • Office, amenity and internal access points
  • Education and public building entries
  • Aged care facility entries and internal access
  • Retail and hospitality entries
  • Architect-designed homes requiring a traditional entry door configuration
  • Heritage and period building refurbishments

Key Performance Considerations

System selection should account for:

  • Leaf size and weight — hinged door panels are constrained by hinge capacity and frame strength; maximum leaf dimensions vary by series and hardware selection
  • Swing direction and clearance — inward and outward swing options are available; swing clearance requirements should be confirmed against the building layout and egress requirements
  • Weather resistance — external hinged doors require appropriate weather sealing and threshold design; series selection should reflect exposure conditions and required water penetration resistance
  • Acoustic performance — glazing selection and frame depth affect acoustic outcomes; relevant to office, education and apartment applications where sound separation is required
  • Thermal performance — U-value and SHGC ratings vary across series; the ThermalHEART series provides thermally broken frames for projects with elevated NCC energy requirements
  • Hardware selection — hinge type, closer, lockset and handle selection should reflect usage frequency, security requirements and accessibility obligations
  • Accessibility compliance — door width, hardware height and opening force requirements should be confirmed against NCC accessibility provisions and relevant Australian Standards
  • Fire and egress compliance — doors used for fire egress must meet relevant BCA requirements; hardware and glazing selection should be confirmed against fire rating and egress obligations
  • BAL rating compliance — selected series carry BAL certification for bushfire-prone area applications

Available Range

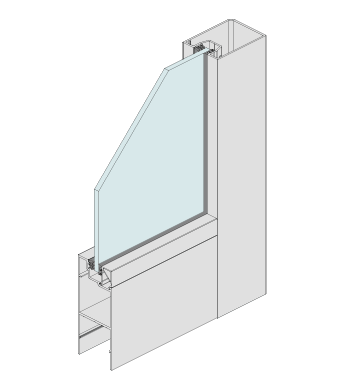

50 Commercial Door (Single Side Beaded)

Aluminium Hinged Door 50

Commercial Door (Single Side Beaded)

  • 50mm-thick stiles for added strength
  • Hinged, sliding, or pivot door configuration
  • Glass up to 28mm thick for strength, safety, and energy performance
  • Security glazing available
  • Heavy duty bottom rolling running gear or top-hung roller options
  • Compatible with Centor Eco Screen
  • Accommodates most lock types
Maximum Frame Height* 3000mm
Maximum Panel Width* 1200mm
Maximum Glass Thickness ≤10.38mm
SHGC Range 0.26-0.6
Uw Range 4.3-6.0

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure
Full Technical Specifications (AWS)

Certified

AS1428 Compliant
Livable Housing Design
BAL-40

51 Light Commercial Door

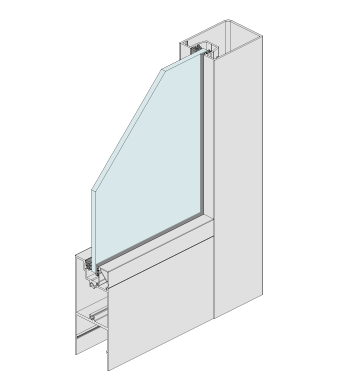

Aluminium Hinged Door 51

Light Commercial Door

  • Superior strength and durability with 50mm-thick stiles
  • Glass can be blocked for added strength
  • Security glazing or glass up to 10.38mm thick
  • Compatible with Centor Eco Screen
  • Door frames accommodate nearly all lock types
Maximum Frame Height* 3000mm
Maximum Panel Width* 900mm
Maximum Glass Thickness ≤10.38mm

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure
Full Technical Specifications (AWS)

Certified

BAL-40

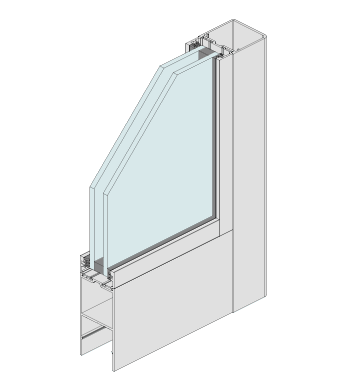

52 Commercial Door (Double Side Beaded)

Aluminium Hinged Door 52
Maximum Frame Height* 3000mm
Maximum Panel Width* various
Maximum Glass Thickness ≤28mm
SHGC Range 0.14-0.54
Uw Range 3.1-4.0

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure
Full Technical Specifications (AWS)

Certified

AS1428 Compliant
Livable Housing Design

Hardware Options

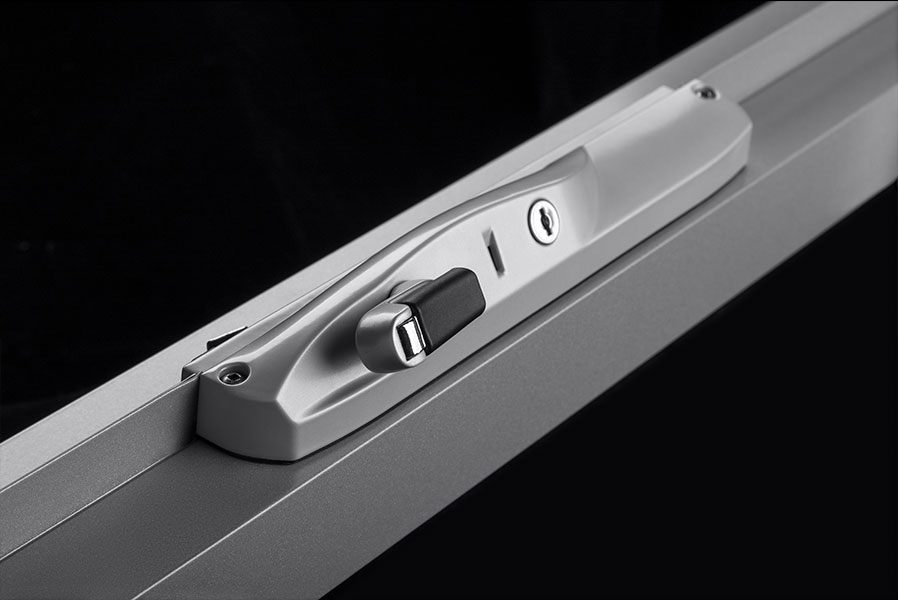

Awning Window Winder
Developed to complement the modern design and clean lines of the Architectural Series, the ANDO™ range brings a fresh and sleek look to residential or commercial windows and doors.
Read More Here

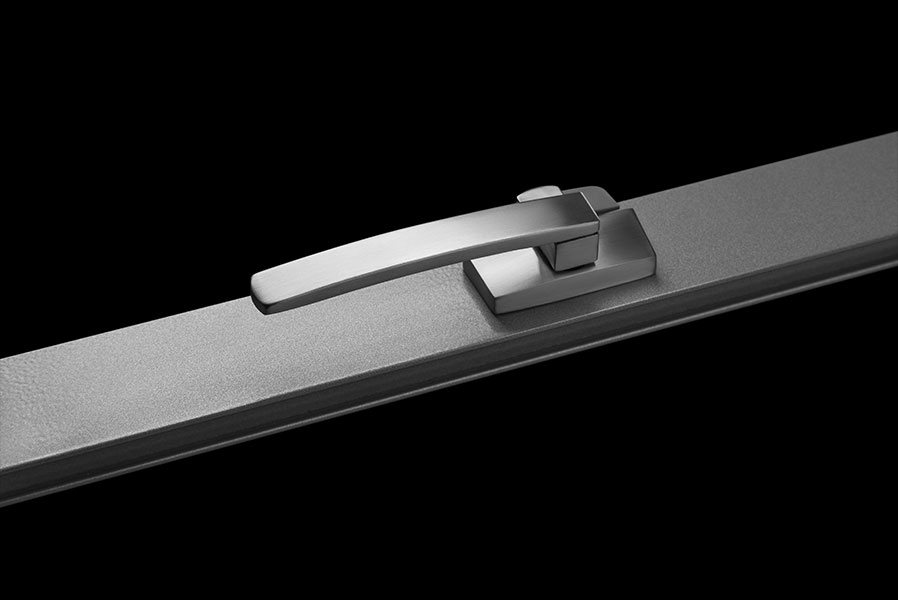

Casement Window Latch
The ICON™ hardware range is a fully integrated range of 316-grade stainless steel hardware for aluminium windows and doors offering superior weathering performance.
Read More Here
Awning Window Winder
MIRO™ Hardware offers a stunning blend of contemporary design, function and durability incorporating comfortable ergonomics and beautiful aesthetics to provide ease of use across all ages.
Read More Here

Energy Performance & Thermal Ratings

Hinged door systems are WERS rated where applicable, providing verified U-value and Solar Heat Gain Coefficient (SHGC) data for use in NCC energy compliance calculations and thermal modelling.

Key energy performance factors for specification:

  • U-value — measures the rate of heat transfer through the door assembly; lower values indicate better thermal insulation; particularly relevant for entry doors on thermally conditioned buildings
  • SHGC — measures solar heat gain through the glazing; relevant for glazed entry doors on north and west-facing facades where solar exposure is significant
  • Glazing selection — single and double glazing options are available across the range; low-e coatings and laminated glass can be specified to meet thermal, safety or acoustic requirements
  • ThermalHEART series — thermally broken frames improve overall system U-values for projects with elevated energy performance requirements

SHGC and U-value ranges for each series are shown in the Available Range section above. For detailed energy performance data and climate zone guidance, see our WERS & Energy Performance and Thermally Broken Frames resource pages.

Integration

Hinged door systems integrate across facade, sector and specification decisions:

  • Facade Solutions — commonly used as entry and egress components within commercial framing and shop front assemblies; can be combined with fixed sidelights and fanlights to create complete entry facade arrangements
  • Sectors — applicable across education, aged care, retail and architectural homes projects; fire egress and accessibility compliance requirements vary by sector and should be confirmed early
  • Specification — glass selection, colour finishes and hardware are all configurable; closer, lockset and handle options should be selected to suit usage frequency and accessibility requirements; refer to the Specification section for detail on available options

Frequently Asked Questions

For hinged door system selection, accessibility or egress advice, or to submit drawings for review, our team is available to assist.

Upload Plans / RFQ
Contact Technical Team
