Sliding Door Systems

Large Opening & Space-Efficient Operation

Aluminium sliding door systems delivering large panel capacity, smooth operation and weather performance for commercial, multi-residential and architectural projects.

Sliding door systems are among the most widely specified door types across commercial and residential construction. Panels slide horizontally within the frame rather than swinging outward, making them well suited to locations where swing clearance is limited — balconies, courtyards, tight internal layouts and facades where outward projection is not practical. Their ability to accommodate large panel widths while maintaining a relatively slim frame profile makes them a common choice across multi-residential, commercial and architectural home applications. Hunter Windows supplies and installs sliding door systems from the AWS Elevate range, available across multiple series configurations to suit panel size, performance requirements and project scale.

Typical Applications

Sliding door systems are commonly specified across:

Multi-residential apartments and balcony access points
Commercial office and mixed-use developments
Aged care facilities where ease of operation is a priority
Architect-designed homes with indoor-outdoor living connections
Retail and hospitality frontages
Education and public buildings requiring accessible entry points
Facades where outward swing clearance is not available

Key Performance Considerations

System selection should account for:

Panel size and weight — sliding door systems can accommodate large panel widths and heights; series selection determines maximum dimensions, glass thickness capacity and structural performance
Weather resistance — tested water penetration and air infiltration performance varies by series; exposure conditions, building height and threshold design all influence appropriate series selection
Acoustic performance — glazing selection and frame depth affect acoustic outcomes; relevant to apartment, aged care and commercial applications adjacent to noise sources
Thermal performance — U-value and SHGC ratings vary across series; the ThermalHEART series provides thermally broken frames for projects with elevated NCC energy requirements
Hardware and operation — roller quality and track design directly affect long-term ease of operation and durability; heavy-duty hardware options are available for large panel weights and high-traffic applications
Threshold design — low-profile and flush threshold options improve accessibility and reduce trip hazard risk; threshold selection affects both structural connection and finished floor level relationship
Security — multipoint locking and security screen integration options should reflect project security requirements and relevant Australian Standards
BAL rating compliance — selected series carry BAL certification for bushfire-prone area applications

Available Range

471 Apartment Sliding Door

Apartment Sliding Door

Tested to a water resistance of 600pa
Meets Australian air-conditioning standards
Superior energy performance and comfort
Surface or mortice deadlocks for a sleek, refined finish
Compatible with sliding fly screen
Available in a large variety of sliding door combinations

Maximum Frame Height*	2630mm
Maximum Panel Width*	1470mm
Maximum Glass Thickness	≤20mm
SHGC Range	0.29-0.55
Uw Range	4-6

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

852 Thermally Broken Door System

Thermally Broken Door System

Minimizes heat or cold transfer
Excellent energy efficiency
Ideal for commercial and high-end residential applications
Heavy-duty bottom rolling stainless steel bearings or Centor top-hung rollers
Flexible design options for single sliding door, stacking sliding door, hinged door, or pivot door
Compatible with Centor Eco Screen retractable flyscreen

Maximum Frame Height*	2800mm
Maximum Panel Width*	2500mm
Maximum Glass Thickness	≤28mm
SHGC Range	0.16-0.45
Uw Range	2.6-3.4

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

442 Commercial Stacking Sliding Door (100mm Framing)

Commercial Stacking Sliding Door (100mm Framing)

Strength, security, and beauty
Two and three-panel configurations for optimized views
90° corner opening configuration for uninterrupted transition to the outdoors
High-performance rollers for smooth, quiet operation
Complies with Australian air-conditioning standards for better energy performance and comfort
Tested for water resistance to 450Pa, suitable for use in all Australian environments
Compatible with external sliding fly screen doors

Maximum Frame Height*	2700mm
Maximum Panel Width*	1350mm
Maximum Glass Thickness	≤20mm

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

642 Commercial Stacking Sliding Door (150mm Framing)

Commercial Stacking Sliding Door (150mm Framing)

150mm commercial framing
High-performance, whisper-quiet rollers
Three panel configurations, including 90° corner opening
Compatible with external sliding fly screen doors
Compliant with Australian air-conditioning standards for better energy performance and comfort
Tested for water resistance to 450Pa

Maximum Frame Height*	2700mm
Maximum Panel Width*	1200mm
Maximum Glass Thickness	≤20mm
SHGC Range	0.22-0.67
Uw Range	3.2-6

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

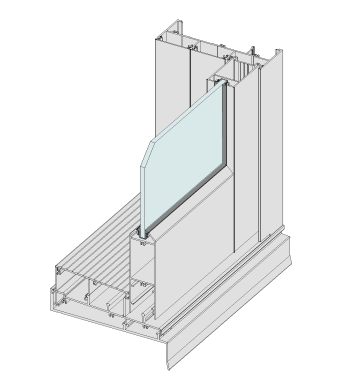

702 SlideMASTER™ Sliding Door (External Sliding)

SlideMASTER™ Sliding Door (External Sliding)

High-performance external sliding door with smooth, sleek visual finish
Compliant with all Australian Standards, air conditioning requirements, and high wind standards
Very high water resistance of 600Pa
Aluminium sub-sills for optimal weather protection
Large variety of sliding door combinations, including 90-degree corner unit option
Compatible with Series 406/606 and 426/626 FrontGLAZE™ framing for smooth, sleek finish
Internal sliding or roller fly doors and surface mounted deadlock, mortice lock, or multi-point mortice locks for a premium finish
Compatible with Centor Eco Screen

Maximum Frame Height*	3000mm
Maximum Panel Width*	1000mm
Maximum Glass Thickness	≤28mm
SHGC Range	0.14-0.59
Uw Range	3.3-6.2

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

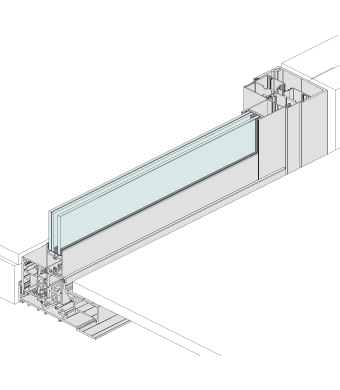

703 SlideMASTER™ High Performance Sliding Door (Recessed Sill)

SlideMASTER™ High Performance Sliding Door (Recessed Sill)

Flush threshold, architectural style, and high performance for exposed locations or elevated apartments
Compliant with Australian standards, including AS2047 for air-conditioning and high wind areas
Very high water resistance of 1200Pa
Fully recessed sill for clean transition from inside to outside
Extra-strong panels for large sliding doors in high wind load areas
Bottom rolling panels on heavy-duty rollers for smooth operation
Surface-mounted deadlock or mortice lock
Sill designed to be installed in conjunction with external floor tiles, offering concealed drainage and a flush transition
Alternative splayed sill for highest water performance with slight (7⁰) slope in the threshold
First run of floating external floor tiles are self-draining and removable for future panel maintenance
Door panels slide on the inside
Snap-in pocket fillers on the head, sill, and jambs for consistent visual appearance

Maximum Frame Height*	3000mm
Maximum Panel Width*	1000mm
Maximum Glass Thickness	≤28mm
SHGC Range	0.14-0.59
Uw Range	3.3-6.2

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

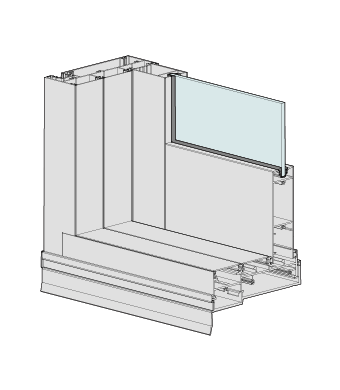

704 SlideMASTER™ Sliding Door

SlideMASTER™ Sliding Door

Smooth, sleek visual finish and premium performance
Compliant with all Australian Standards, air conditioning requirements, and high wind standards
High water resistance of 600Pa
Aluminium sub-sills for optimal weather protection
Large variety of sliding door combinations
90-degree corner unit option
Compatible with Series 406/606 and 426/626 FrontGLAZE™ framing
Internal sliding or roller fly doors
Internal styling options include surface mounted deadlock, mortice lock, or multi-point mortice locks
Compatible with Centor Eco Screen

Maximum Frame Height*	3000mm
Maximum Panel Width*	1000mm
Maximum Glass Thickness	≤28mm
SHGC Range	0.14-0.59
Uw Range	3.3-6.2

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

704B SlideMASTER™ Sliding Door (Bottom Rolling)

SlideMASTER™ Sliding Door (Bottom Rolling)

Bottom rolling design for minimal sill
Low line sill (35mm high) can be recessed into the floor
Suitable for architecturally designed homes
Sliding door panels up to 3300mm high x 2500mm wide
AS1428.1 wheelchair compliant sill
Single and double sliding door panels, bi-parting sliding doors, and corner sliding doors
Compatible with Centor Screens
Optional sliding stacking flydoor system
Wide range of locking options, including stylish ICON Stainless Steel handles
Heavy duty rollers for smooth operation
Optional high performance sill for exposed locations

Maximum Frame Height*	3000mm
Maximum Panel Width*	1000mm
Maximum Glass Thickness	≤28mm
SHGC Range	0.14-0.59
Uw Range	3.3-6.2

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

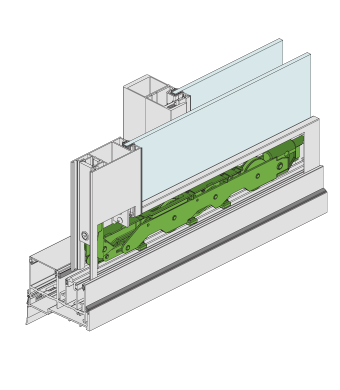

704LS SlideMASTER™ Sliding Door (Lift Slide)

SlideMASTER™ Lift Slide Sliding Door

Lift-slide action for effortless opening and closing
Available in a variety of configurations, including corner doors
Wheelchair accessible sill
Compatible with Centor Screens
Excellent weather performance
Accepts a wide range of glass options

Maximum Frame Height*	3300mm
Maximum Panel Width*	2500mm
Maximum Glass Thickness	≤24mm
SHGC Range	0.15-0.66
Uw Range	3.0-6.2

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

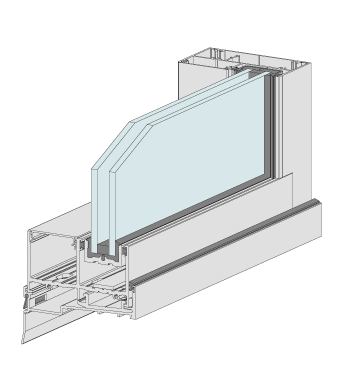

704FBR SlideMASTER™ Sliding Door (Flush Bottom Rolling)

SlideMASTER™ Flush Bottom Rolling Sliding Door

Concealed head, sill, and jambs for uninterrupted glass sightlines
Extra large sliding panels up to 3300mm high x 2500mm wide
A range of configuration options, including single and double sliding panels, bi-parting doors, and corner sliding doors
Compatible with Centor Screens and high performance single and double glazed FrontGLAZE™ framing
Heavy duty stainless steel rollers

Maximum Frame Height*	3300mm
Maximum Panel Width*	2500mm
Maximum Glass Thickness	≤26mm
SHGC Range	0.24-0.74
Uw Range	2.2-4.2

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

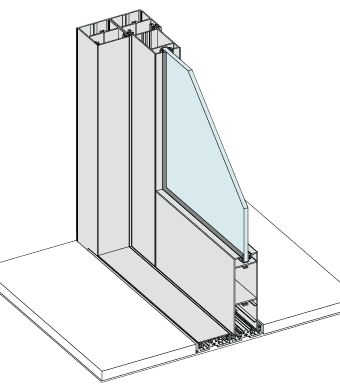

704iD SlideMASTER™ Internal Sliding Door

SlideMASTER™ Internal Sliding Door

Bottom-rolling system for internal applications
Wheelchair accessible sill
High-performance sliding door tested to Australian Standards
Extra strong multi-hollow meeting stiles for large sliding doors
Variety of door combinations available
Doors can be fitted with surface mounted deadlock, mortice lock or multi-point mortice lock
Doors run on heavy duty double or quad bogey wheel carriages
Variety of bottom rail and midrail sizes available
Thresholds and snap-in flat filler for clean looks
Doors can be fitted with external sliding or internal Centor™ S4 retractable roller fly doors

Maximum Frame Height*	3000mm
Maximum Panel Width*	2000mm
Maximum Glass Thickness	≤24mm

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

704T SlideMASTER™ Sliding Door (Top Hung)

SlideMASTER™ Top Hung Sliding Door

Seamless threshold transition
Disability access compliant sill
Smooth gliding door operation
Heavy duty adjustable top hung rollers
Wide range of configuration options
Excellent weather performance
Accepts a wide range of glass options

Maximum Frame Height*	3300mm
Maximum Panel Width*	2500mm
Maximum Glass Thickness	≤24mm
SHGC Range	0.15-0.66
Uw Range	3.0-6.2

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

704R SlideMASTER™ Sliding Door (Recessed)

SlideMASTER™ Sliding Door (Recessed)

European inspired design
Recessed bottom rail for clear glass sight lines
Smooth gliding door operation
Wide range of configuration options
Excellent weather performance
Accepts a wide range of glass options

Maximum Frame Height*	3300mm
Maximum Panel Width*	2500mm
Maximum Glass Thickness	≤24mm
SHGC Range	0.15-0.59
Uw Range	3.0-6.2

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

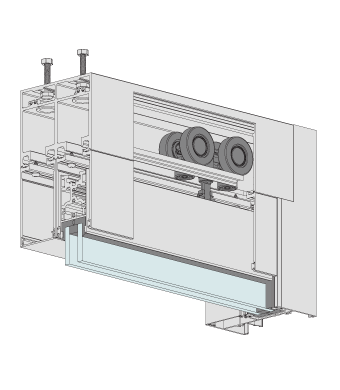

704FTH SlideMASTER™ Sliding Door (Flush Top Hung)

SlideMASTER™ Sliding Door (Flush Top Hung)

Concealed head, sill, and jambs for uninterrupted glass sightlines
Smooth gliding door operation
Wide range of configurations
Compatible with Centor Screens and high performance single and double glazed FrontGLAZE™ framing

Maximum Frame Height*	3300mm
Maximum Panel Width*	2500mm
Maximum Glass Thickness	≤26mm
SHGC Range	0.24-0.74
Uw Range	2.2-4.2

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

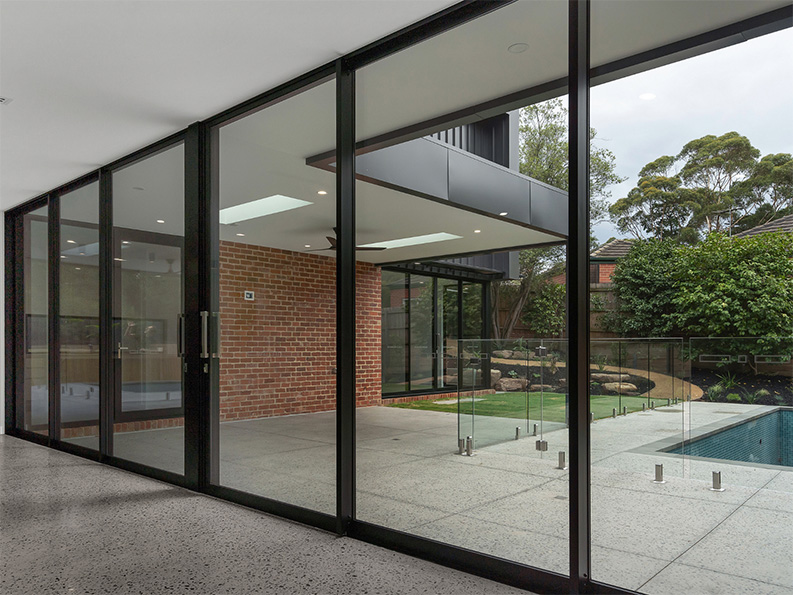

618 MAGNUM™ Sliding Door

MAGNUM™ Sliding Door

Clean lines, strength, and bold styling
Up to four panels in each direction, spanning up to 12 meters
Panels up to three meters high
A range of standard or high-performance sills
Can be recessed into a slab for a flush threshold
Ideal for areas with high winds or heavy rain
Can be configured as a 90° corner pull-away door, or with a cavity slide option
Accepts single or double glazing
Heavy-duty rollers for smooth operation

Maximum Frame Height*	3000mm
Maximum Panel Width*	2000mm
Maximum Glass Thickness	≤24mm
SHGC Range	0.22-0.67
Uw Range	3.0-6.2

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

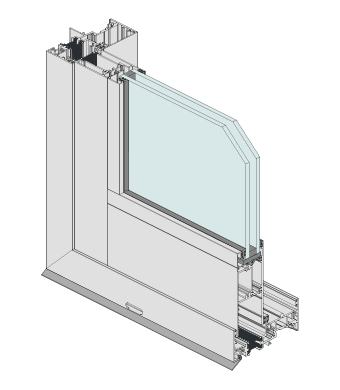

731 Thermally Broken Sliding Door

Thermally Broken Sliding Door

Energy-efficient and stylish
Thermal insulation strip minimizes heat and cold transfer
Big, bold frames span wide openings
Low Uw values provide excellent insulation
Up to 32% more energy efficient than traditional double-glazed sliding doors
Heavy duty rollers for smooth operation
Unused frame tracks are filled with snap-in fillers
Sill can be recessed into a slab for a flush threshold

Maximum Frame Height*	3000mm
Maximum Panel Width*	1995mm
Maximum Glass Thickness	≤32mm
SHGC Range	0.18-0.52
Uw Range	2.2-5.1

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

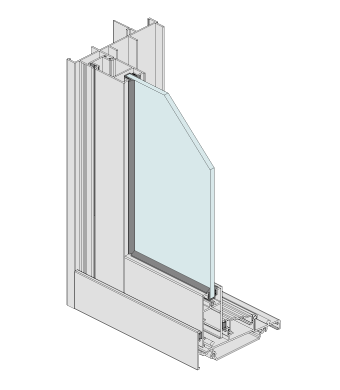

541 Residential Sliding Door

Residential Sliding Door

Standard, high-performance, or lowline sills
Wide rollers for smooth operation
Flyscreen doors can be fitted to the outside
Single and multi-point locks
Single or double glazing
Variety of performance-glass options

Maximum Frame Height*	2400mm
Maximum Panel Width*	1200mm
Maximum Glass Thickness	≤20mm
SHGC Range	0.21-0.72
Uw Range	3.0-6.2

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

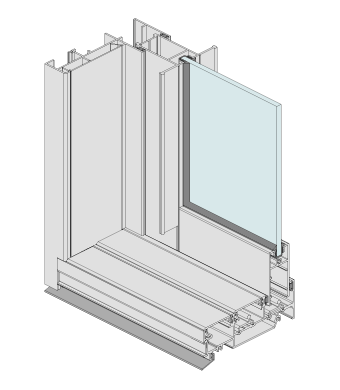

542 Residential Stacking Sliding Door

Residential Stacking Sliding Door

Wide-opening door for patios and decks
Three-panel door opens to two-thirds of its width
Bi-parting option spans up to eight meters
Seamless connection to the outdoors
Great for ventilation
Flyscreens tuck neatly into the door
Unused tracks are filled to keep the door sill clean
Single or double glazed
Heavy-duty rollers for smooth operation

Maximum Frame Height*	2700mm
Maximum Panel Width*	1350mm
Maximum Glass Thickness	≤20mm
SHGC Range	0.21-0.72
Uw Range	3.0-6.2

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

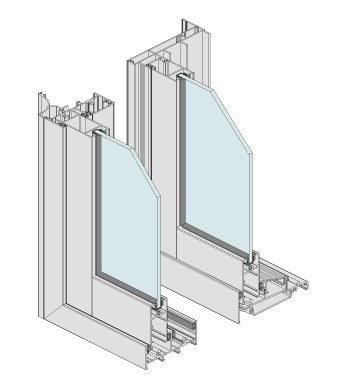

533 SoundOUT™ Secondary Glazed Sliding Door

SoundOUT™ Soundproof Sliding Door

Reduces noise infiltration through sliding door openings
Double weatherpile sealed on all sides for maximum soundproofing
Slimline meeting stiles for maximum vision
All sashes can be opened for cleaning
Heavy duty wheels for smooth operation
Accepts glass up to 7.52mm thick or can be double glazed

Maximum Frame Height*	2360mm
Maximum Panel Width*	1200mm
Maximum Glass Thickness	≤20mm

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Brochure

Full Technical Specifications (AWS)

Certified

Hardware Options

ANDO™

Developed to complement the modern design and clean lines of the Architectural Series, the ANDO™ range brings a fresh and sleek look to residential or commercial windows and doors.

ICON™

The ICON™ hardware range is a fully integrated range of 316-grade stainless steel hardware for aluminium windows and doors offering superior weathering performance.

MIRO™

MIRO™ Hardware offers a stunning blend of contemporary design, function and durability incorporating comfortable ergonomics and beautiful aesthetics to provide ease of use across all ages.

Energy Performance & Thermal Ratings

Sliding door systems are WERS rated, providing verified U-value and Solar Heat Gain Coefficient (SHGC) data for use in NCC energy compliance calculations and thermal modelling.

Key energy performance factors for specification:

U-value — measures the rate of heat transfer through the door assembly; lower values indicate better thermal insulation across large glazed panel widths
SHGC — measures solar heat gain through the glazing; particularly relevant for large sliding door openings on north and west-facing facades where solar exposure is significant
Glazing selection — performance outcomes vary significantly with glass type; double glazing, low-e coatings and laminated options are available across the range
ThermalHEART series — thermally broken aluminium frames reduce heat transfer at the frame, improving overall system U-values for projects with elevated energy performance requirements

SHGC and U-value ranges for each series are shown in the Available Range section above. For detailed energy performance data and climate zone guidance, see our WERS & Energy Performance and Thermally Broken Frames resource pages.

Integration

Sliding door systems integrate across facade, sector and specification decisions:

Facade Solutions — commonly used within window wall and commercial framing assemblies; suited to repetitive facade bays requiring consistent large-format glazed door openings across multiple levels
Sectors — applicable across multi-residential, aged care, retail and architectural homes projects, each with distinct operational, accessibility and performance requirements
Specification — glass selection, colour finishes, hardware and threshold options are all configurable; refer to the Specification section for detail on available options

Frequently Asked Questions

Sliding door systems operate horizontally within the frame, requiring no outward swing clearance. This makes them well suited to balcony access points in multi-residential buildings where space is constrained and large glazed openings are desirable. Their ability to accommodate large panel widths also supports consistent facade glazing across repetitive building levels.

Weather resistance performance varies by series. For high-exposure or coastal applications, series selection should be based on tested water penetration resistance and air infiltration ratings. Threshold design is also critical in exposed locations. Our team can advise on appropriate series and threshold options for specific exposure conditions.

Low-profile and flush threshold options are available on selected series, improving accessibility and reducing trip hazard risk. Threshold selection should be confirmed early as it affects both the structural connection and the finished floor level relationship. Recessed track options may be available on selected series.

Yes, with appropriate series and hardware selection. High-traffic commercial applications require heavy-duty roller and track hardware designed to withstand frequent operation. Series selection should reflect anticipated usage frequency and panel weight. Our team can advise on suitable configurations for commercial applications.

Yes. Our team can review project requirements, exposure conditions, accessibility needs and NCC obligations to recommend suitable series and configurations. Upload drawings or contact us to discuss your project.

For system selection, threshold options or to submit drawings for review, our team is available to assist.

Upload Plans / RFQ

Contact Technical Team

Our Projects

View All Projects

Sky Residences

In the heart of Newcastle CBD’s Civic Cultural Precinct is contemporary build that showcases what Hunter Windows can achieve.

Centrale Apartments

Located on the corner of Brunker Road and Awaba Road Broadmeadow. Centrale consists of 39 apartments across 4 levels and a fantastic rooftop entertaining space, all of which was completed in just under 12 months. The construction of Centrale was a true team effort that saw four Hunter Group companies working together to achieve completion.

Aluminium sliding door systems delivering large panel capacity, smooth operation and weather performance for commercial, multi-residential and architectural projects.

Typical Applications

Key Performance Considerations

Available Range

471 Apartment Sliding Door

Certified

852 Thermally Broken Door System

Certified

442 Commercial Stacking Sliding Door (100mm Framing)

Certified

642 Commercial Stacking Sliding Door (150mm Framing)

Certified

702 SlideMASTER™ Sliding Door (External Sliding)

Certified

703 SlideMASTER™ High Performance Sliding Door (Recessed Sill)

Certified

704 SlideMASTER™ Sliding Door

Certified

704B SlideMASTER™ Sliding Door (Bottom Rolling)

Certified

704LS SlideMASTER™ Sliding Door (Lift Slide)

Certified

704FBR SlideMASTER™ Sliding Door (Flush Bottom Rolling)

Certified

704iD SlideMASTER™ Internal Sliding Door

Certified

704T SlideMASTER™ Sliding Door (Top Hung)

Certified

704R SlideMASTER™ Sliding Door (Recessed)

Certified

704FTH SlideMASTER™ Sliding Door (Flush Top Hung)

Certified

618 MAGNUM™ Sliding Door

Certified

731 Thermally Broken Sliding Door

Certified

541 Residential Sliding Door

Certified

542 Residential Stacking Sliding Door

Certified

533 SoundOUT™ Secondary Glazed Sliding Door

Certified

Hardware Options

ANDO™

Developed to complement the modern design and clean lines of the Architectural Series, the ANDO™ range brings a fresh and sleek look to residential or commercial windows and doors.

ICON™

The ICON™ hardware range is a fully integrated range of 316-grade stainless steel hardware for aluminium windows and doors offering superior weathering performance.

MIRO™

MIRO™ Hardware offers a stunning blend of contemporary design, function and durability incorporating comfortable ergonomics and beautiful aesthetics to provide ease of use across all ages.

Energy Performance & Thermal Ratings

Integration

Frequently Asked Questions

Our Projects

Sky Residences

Centrale Apartments

Hunter Windows (DEV) 6/52 Bonville Avenue Thornton NSW 2322

Hunter Windows (DEV)
6/52 Bonville Avenue
Thornton NSW 2322
